Mechanical Binding > Comb Binding

Comb Binding is a very common product that is more cost effective, and supplies can be easily found.  It uses a preformed plastic element where prongs are stretched and fed through rectangular punched holes the prongs are then released and return to their preformed position making a complete loop.  Its primary feature is that sheets can be added or removed.  The a bound book can lie flat, however the sheets cannot be turned 360˚.




electric comb punch and bind machineHeavy Duty Electric Comb Punch and Binding Machine

Made of sturdy die-casted metal rather than flexible sheet metal, the ETitanComb is the most heavy duty, reliable, user-friendly, and functional machine in its class.  DFG chose to use die-casted metal for the base and sides of the housing unit rather than using sheet metal for the punching surface to ensure your machine is solid in all the important places.

The ETitanComb uses an encased lubrication system that drastically reduces friction and punch pin wear, which equates to longer machine life for the end user. High-speed, commercial punches that cost over $30,000 lubricate their punch pins. DFG utilizes this technology in our commitment to taking the extra step to deliver the best machine possible to the marketplace.

Utilizing full disengagement-pin design, our punched paper is free from partial punches, on any size project. Our disengagement-pin design uses independent coil spring mechanisms on each pull pin that allows the pins to disengage with a crisp snapping action.  Our punch pins are heat treated and precisely ground to ensure consistent, clean, punching.

Punch any length paper with our open throat and alignment pin.  Our design makes it possible to punch paper of any length with no restrictions.  After the first punch, put one hole through the alignment pin to keep your subsequent punches aligned correctly.

With our specially designed Hi-Torq™ punch motor, torture tested for 3,000,000 cycles, the ETitanComb takes comb binding to the next level of convenience and ease. The ETitanComb can punch 28 sheets of 20 lb paper with the gentle push on a foot pedal, eliminating the manual punching strain on staff members. Our high punching capacity of 28 sheets gives you 12% more productivity over machines that punch only 25 sheets.

After punching your paper, place the comb on the comb opener teeth and use the handle to open the comb, which easily open with the slightest of pressure.

Countless years of experience led to DFG to produce a machine with the most sophisticated design, testing methods, and manufacturing techniques to develop the most rigid heavy duty chassis in its class at 29% less overall machine weight.

The ETitanComb is ETL certified, which means it has been thoroughly tested by an independent third party to ensure the highest safety standards are met.  Want to learn more about safety certification?  Visit our ETL vs. CE comparison page.

DFG enforces and abides by high quality and environmental standards, which is why we are ISO9002 and APQP certified.



ETitanComb Benefits:

  • Heavy Duty Electric Punch: Up to 28 sheets (20 lb)

  • Encased Lubrication Tool System: Extends punch tool life and machine life

  • Full Disengagement Pins: Ensures a completely clean professional punch without partial punches on any length of paper

  • Hands-Free Punching: Foot pedal controls punch actuation.

  • Anti Jam Function: Automatically senses and prevents jams.

  • Binding: up to 2" (500 sheets), 11" standard punch width

  • Lightweight Design: Extensively utilized CAE (Computer Aided Engineering), greatly reduced machine weight

  • Open Throat Design with EasyPunch: Easily punch any size book

  • Adjustable Punch Margin: Assists in controlling the punch margin depth in order to maximize a book’s tear resistance

  • Side Margin Control: Center punched holes quickly and easily

  • Comb Size Selector: Built-in indicator shows suggested comb size

  • All Metal Construction

  • Non-Skid Feet: Firmly holds machine to work surface

  • Large Waste Drawer

  • ETL Certified - Entire machine was tested by an impartial third party to meet American safety standards as opposed to European CE certification. More about ETL vs CE



Questions? Call DFG at (800) 480-4DFG for more information.

Specifications:

Model

ETitanComb

Punch Type

Electric, heavy duty, full disengagement pins, open throat

Punch Capacity

Up to 28 sheets of 20 lb paper

Binding Capacity

Up to 2” thickness (50 mm), 500 sheets

Punch Length

12” (open throat, continuous punching guide easily punch to 21” and other sizes.)

Hole Pattern

9/16” pitch. rectangle 5/16” x 1/8” hole

Power Supply

110V AC, 60Hz

Weight

50 pounds

Manufacturer’s Warranty

One year



Back to Top




p9000

DFG’S BOB Comb E is the first and only extra heavy duty electrical comb punch and manual binding machine at its class. It can punch world record 35 sheets (20#) or 3.2 mm hardboard in one punch. This is due to DFG’s Hi-Torq™ punch motor and innovative super strength machine design. BOB Comb E can punch and bind any length and thickness of book.

Made of sturdy die-casted metal rather than flexible sheet metal, the BOB COMB E is the most heavy duty, reliable, user-friendly, and functional machine in its class. DFG chose to use die-casted metal for the base and sides of the housing unit rather than using sheet metal for the punching surface to ensure your machine is solid in all the important places.

The BOB Comb E uses an encased lubrication system that drastically reduces friction and punch pin wear, which equates to longer machine life for the end user. High-speed, commercial punches that cost over $30,000 lubricate their punch pins. DFG utilizes this technology in our commitment to taking the extra step to deliver the best machine possible to the marketplace.

Utilizing full disengagement-pin design, our punched paper is free from partial punches, on any size project. Our disengagement-pin design uses independent coil spring mechanisms on each pull pin that allows the pins to disengage with a crisp snapping action. Our punch pins are heat treated and precisely ground to ensure consistent, clean, punching.

Punch any length paper with our open throat and alignment pin. Our design makes it possible to punch paper of any length with no restrictions. After the first punch, put one hole through the alignment pin to keep your subsequent punches aligned correctly.

With our specially designed Hi-Torq™ punch motor, torture tested for 200,000 cycles, the BOB Comb E takes comb binding to the next level of convenience and ease. BOB Comb E can punch 35 sheets of 20 lb paper with the gentle push on a foot pedal, eliminating the manual punching strain on staff members. Our high punching capacity of 35 sheets gives you 40% more productivity over machines that punch only 25 sheets.

After punching your paper, place the comb on the comb opener teeth and use the handle to open the comb, which easily open with the slightest of pressure.
Countless years of experience led to DFG to produce a machine with the most sophisticated design, testing methods, and manufacturing techniques to develop the most rigid heavy duty chassis in its class at 29% less overall machine weight.

BOB Comb E Benifits

  • Heavy Duty Electric Punch: Up to 35 sheets (20 lb). Or 3.2 mm hardboard
  • Encased Lubrication Tool System: Extends punch tool life and machine life
  • Full Disengagement Pins: Ensures a completely clean professional punch without partial punches on any length of paper
  • Hands-Free Punching: Foot pedal controls punch actuation.
  • Anti Jam Function: Automatically senses and prevents jams.
  • Binding: up to 2" (500 sheets)
  • Lightweight Design: Extensively utilized CAE (Computer Aided Engineering), greatly
  • BOB Comb E Specofications

Model:

BOB Comb E

Punching Capacity

35 sheets (20#) per punch 3.2 mm hardboard

Punch Length

Any Length thanks to the fully disengagement pins and open throat design

Binding Capacity

Up to 2” thickness (50 mm), 500 sheets

Weight

60 Lbs

Dimensions

21” x 19” x 14”

Disengagement Pins

Full set

Power Supplier

110/120 V AC, 60 HZ

Hole Pattern 9/16” pitch. rectangle 5/16” x 1/8” hole

Warranty

One year limited


New Videos!










Back to Top



manual comb punch and bind machine

Made of sturdy die-casted metal rather than flexible sheet metal, the TitanComb is the most heavy duty, reliable, user-friendly, and functional machine in its class.  DFG chose to use die-casted metal for the base and sides of the housing unit rather than using sheet metal for the punching surface to ensure your machine is solid in all the important places.

The TitanComb uses an encased lubrication system that drastically reduces friction and punch pin wear, which equates to longer machine life for the end user. High-speed, commercial punches that cost over $30,000 lubricate their punch pins. DFG utilizes this technology in our commitment to taking the extra step to deliver the best machine possible to the marketplace.

Utilizing full disengagement-pin design, our punched paper is free from partial punches, on any size project. Our disengagement-pin design uses independent coil spring mechanisms on each pull pin that allows the pins to disengage with a crisp snapping action.  Our punch pins are heat treated and precisely ground to ensure consistent, clean, punching.

Punch any length paper with our open throat and alignment pin.  Our design makes it possible to punch paper of any length with no restrictions.  After the first punch, put one hole through the alignment pin to keep your subsequent punches aligned correctly.

The TitanComb is capable of punching up to 28 sheets of 20lb paper in one punch. After punching your paper, place the comb on the comb opener teeth and use the handle to open the comb, which easily open with the slightest of pressure.

Countless years of experience led to DFG to produce a machine with the most sophisticated design, testing methods, and manufacturing techniques to develop the most rigid heavy duty chassis in its class at 29% less overall machine weight.

DFG enforces and abides by high quality and environmental standards, which is why we are ISO9002 and APQP certified.


TitanComb Benefits:

  • Heavy Duty Manual Punch: up to 28 sheets (20 lbs)

  • Full Disengagement Pins: ensures a completely clean professional punch without partial punches on any length of paper

  • Binding: up to 2" (500 sheets), 11" standard punch width

  • Anti Jam Function: Automatically senses and prevents jams.

  • Lightweight Design: Extensively utilized CAE (Computer Aided Engineering), greatly reduced machine weight

  • Open Throat Design with EasyPunch: Easily punch any size book

  • Adjustable Punch Margin: Assists in controlling the punch margin depth in order to maximize a book’s tear resistance

  • Side Margin Control: Center punched holes quickly and easily

  • Comb Size Selector: Built-in indicator shows suggested comb size

  • All Metal Construction

  • Non-Skid Feet: Firmly holds machine to work surface

  • Large Waste Drawer

  • ISO9002 and APQP Certified: DFG enforces and abides by high quality and environmental standards.


Questions? Call DFG at (800) 480-4DFG for more information.

TitanComb Specifications:

Model:

TitanComb

Description:

Heavy Duty Manual Comb Punch and Binding Machine

Punching Capacity

1-28 sheets per punch

Binding Capacity

Up to 500 sheets. 3/16” to 2” comb

Disengagement Pins

Full 46

Punch Length

12” one punch. Up to 21” thanks to the open throat design

Weight

30 lbs

Warranty

One year



Back to Top




p9000

DFG’S BOB Comb M is an extra heavy duty manual comb punch and manual binding machine. It can punch world record 30 sheets (20#) or 3.2 mm hardboard in one punch, if you have a strong arm. This is due to DFG’s innovative super strength machine design. BOB Comb M can punch and bind any length and thickness of book.

Made of sturdy die-casted metal rather than flexible sheet metal, the BOB COMB M is the most heavy duty, reliable, user-friendly, and functional machine in its class. DFG chose to use die-casted metal for the base and sides of the housing unit rather than using sheet metal for the punching surface to ensure your machine is solid in all the important places.

The BOB Comb M uses an encased lubrication system that drastically reduces friction and punch pin wear, which equates to longer machine life for the end user. High-speed, commercial punches that cost over $30,000 lubricate their punch pins. DFG utilizes this technology in our commitment to taking the extra step to deliver the best machine possible to the marketplace.

Utilizing full disengagement-pin design, our punched paper is free from partial punches, on any size project. Our disengagement-pin design uses independent coil spring mechanisms on each pull pin that allows the pins to disengage with a crisp snapping action. Our punch pins are heat treated and precisely ground to ensure consistent, clean, punching.

Punch any length paper with our open throat and alignment pin. Our design makes it possible to punch paper of any length with no restrictions. After the first punch, put one hole through the alignment pin to keep your subsequent punches aligned correctly.
After punching your paper, place the comb on the comb opener teeth and use the handle to open the comb, which easily open with the slightest of pressure.
Countless years of experience led to DFG to produce a machine with the most sophisticated design, testing methods, and manufacturing techniques to develop the most rigid heavy duty chassis in its class at 29% less overall machine weight.

BOB Comb M Benifits

  • Heavy Duty Punch: Up to 30 sheets (20 lb). Or 3.2 mm hardboard
  • Encased Lubrication Tool System: Extends punch tool life and machine life
  • Full Disengagement Pins: Ensures a completely clean professional punch without partial punches on any length of paper
  • Hands-Free Punching: Foot pedal controls punch actuation.
  • Anti Jam Function: Automatically senses and prevents jams.
  • Binding: up to 2" (500 sheets)
  • Lightweight Design: Extensively utilized CAE (Computer Aided Engineering), greatly




P63 Punch & P65 Specifications:

Model:

BOB Comb M

Punching Capacity

Up to 30 sheets of 20 lb paper, 3.2 mm hardboard

Binding Capacity Up to 2” thickness (50 mm), 500 sheets

Punch Length

Any Length thanks to the fully disengagement pins and open throat design

Dimensions

21” x 19” x 14”

Weight

Net: 90lbs

Disengagement Pins

Full set

Hole Pattern

9/16” pitch. rectangle 5/16” x 1/8” hole

Warranty

18 months limited for machine and 12 months limited for die



Back to Top

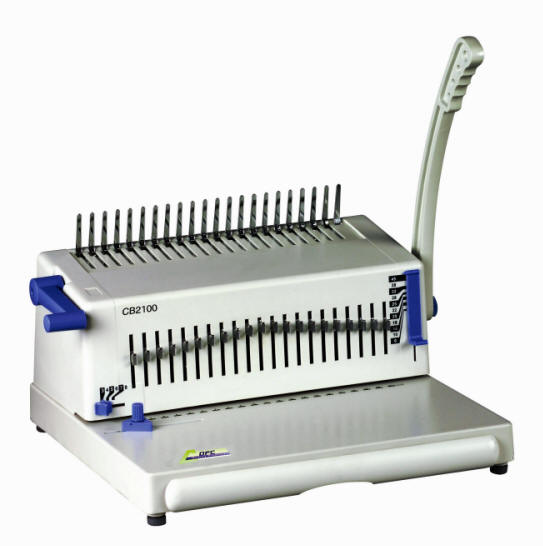

manual comb punch and bind machine

Made of a sturdy die-casted metal base and a strong plastic housing unit, the OfficeComb is a light duty, reliable, user-friendly machine.

The OfficeComb can punch up to 15 sheets of 20lb paper and can bind up to 425 sheets.

Utilizing full disengagement-pin design, our punched paper is free from partial punches, on any size project. Our disengagement-pin design uses independent coil spring mechanisms on each pull pin that allows the pins to disengage with a crisp snapping action.  Our punch pins are heat treated and precisely ground to ensure consistent, clean, punching.

Punch any length paper with our open throat .  Our design makes it possible to punch paper of any length with no restrictions.

Our comb opener teeth easily open with the slightest of pressure with our comb binding handle.

DFG enforces and abides by high quality and environmental standards, which is why we are ISO9002 and APQP certified.



OfficeComb Benefits:

  • Heavy Duty Manual Punch: up to 15 sheets (20 lb)

  • Full Disengagement Pins: Ensures a completely clean professional punch without partial punches on any length of paper

  • Binding: up to 1.7" (425 sheets), 11" standard punch width

  • Lightweight Design: Extensively utilized CAE (Computer Aided Engineering), greatly reduced machine weight

  • Adjustable Punch Margin: Assists in controlling the punch margin depth in order to maximize a book’s tear resistance

  • Comb Size Selector: Built-in indicator shows suggested comb size

  • Side Margin Control: Center punched holes quickly and easily

  • All Metal Construction

  • Non-Skid Feet: Firmly holds machine to work surface

  • Large Waste Drawer

  • ISO9002 and APQP Certified: DFG enforces and abides by high quality and environmental standards.


Questions? Call DFG at (800) 480-4DFG for more information.

OfficeComb Specifications:

Model:

OfficeComb

Description:

Manual Comb Punch and Binding Machine

Punching Capacity

1-15 sheets per punch

Binding Capacity

Up to 425 sheets. 3/16” to 2” comb

Disengagement Pins

Full set

Punch Length

12” one punch. Up to 21” thanks to the open throat design

Weight

15 lbs

Warranty

One year
