laminating


Laminating is a process where a clear film is applied to a printed product using pressure or heat.  They lamination provides protection from wear, UV rays, water, and other damage.  Laminating is an essential for posters, signs, and any thing that needs to go outside or in public areas.


cold laminator


picture of laminatorFully-Automatic system from the inserting stage to the finishing stage.
Revo14, Fully-Automatic Function Laminator, can operate from feeding scripts from feeder to finish up cutting.

Microprocessor Controlling
Revo14 can process high-quality laminate by 4 of the heat-source and laminate the ordered number of scripts by Microprocessor controlling.

Archiving documents
Lamination protects documents from soiling, tears and scratches, maintaining a pristine appearance for a long period. It provides an ideal method for archiving important information and academic materials as well as technical photos.

Safe as the side cutters are set inside
Safe as the side cutters are set inside. Inside side cutters structure improves the safety. Please feel safe to use automatic laminator.

Open structure helps easy maintenance
It is easy to clean rollers and do maintenance by making the inside of a laminator open.

High productivity
Revo14 can laminate 100pcs of paper in about 14 minutes. It takes about 47 minutes by established process.

Hold down running costs.
Revo14 use exclusive laminate film“50μ”and it hold down running cost compared to 100μ.



SPEC
lami
Model LAMIMONKEY Revo14
Max. Laminating Width 12"(305mm)
Max. Laminating Thickness Film50μ(2Mil),Scrpt160g/㎡
Available Paper Core Size of Films
to be used 		Special Films of 1 inch size(25mm core)
Laminating Speed 5.2ft (1600mm)/min
Changeover of the speed Stationary Type
Temperature for Lamination 230゜F (110°C)
Changeover of Temperature Stationary Type control
Heating System Metal Roller System / Heating Roller System
Electric Power Supply 120V/240V
Max. Electric Power Consumption 1000W
Dimension 21.5"×43.3"×12.0"(545(W)x1100(D)x306(H)mm)
Basic Machine Weight (Net Weight) 48.4Lbs(About 22kgs)

Made in Japan by the Lami Corporation, Inc.

Back to Top


cold laminator


Information Coming Soon...Please call us at (800) 480 - 4DFG.



Back to Top


cold laminator

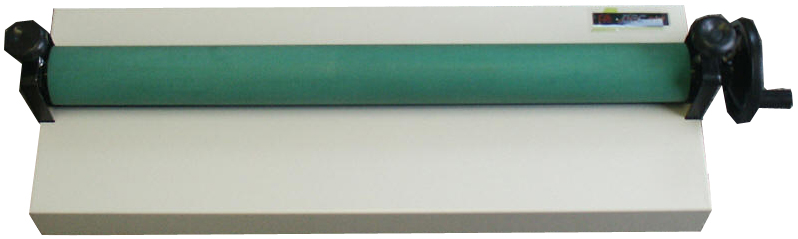

cold laminatorThis low cost cold laminator was designed for applying inkjet printouts and other media to adhesive film overlay.

Great for graphic designers, photography professionals, and hobbyists.  (Laminate your work!)

Large diameter (2 5/8”) semi-soft roller is adjustable- applies appropriate pressure to photos and film material.

Compatible film types:

  • High-gloss studio grade overlay film
  • Matte studio grade overlay film
  • UV protective coating overlay
  • Double-sided adhesive backing
  • Light-box transparent adhesive backing



Specifications:

  • W 27” x D 25” x H 10” ( unfolded size)
  • Weight: 25 lbs
  • Laminator compress wheel diameter: 2 5/8”
  • Hand wheel operation.
  • Left and right pressure adjustable knob
  • Desktop Operation. Light weight and portable.



Call DFG at (800) 480-4DFG for a quote today.

Back to Top


hot laminator


Information Coming Soon...Please call us at (800) 480 - 4DFG.
