Automatic binding is a system that binds pre-punched materials at high rates of speed from bulk spools using wire, metal coil, or plastic coil.



wm calendar making machine

wm machine
It is a high technology machine, designed and built with the latest generation components. Depending on the market requests it allows customers to invest in a small equipment , easy to be operated.

Projected for binding brochures, manuals, calendars, folders, and special products, a perfect solution to produce small runs, very flexible for several applications:

  • Punching
  • Punching and inserting the wire-o
  • Wire-o binding with or without hanger
  • Binding with the wire-o, using materials already perforated

The WM set-up is automatic and intuitive by using the touch-screen. No adjustment on the binding kit by selecting the wire-o number of rings on the touch screen.

The operator can easily center the material between the clamps by using the punching and hanger profile marked on the stell table.

The material is moved by clamps and perforated by perforating tools of various sizes.
The operations on the punch and base tools, during the change of the format, are extremely easy.

After the perforation, the material, still kept by the clamps, reaches the binding station where.

In this station the metallic hanger is shaped and inserted through a loader which can store about 500 pieces of wire (2mm diameter) already cut,but still not shaped. Up to 70 hangers ready can be stored by the accumulator.

A detector situated after the hanger's insertion checks its presence and stop the machine in case of absence.

The automatic insert of the wire-o is obtained keeping the material still.

The binding station is interchangeable over a tray which allows to put the different kit (3/16”, 1/4”, 5/16”, 3/8”) in less than five minutes. When it is requested to change the wire-o size, with simple movement you just have to unlock the kit from the machine and to substitute it with the new one.

General technical data:
Max binding size: mm 500x500 and mm 500x700 - (punching side: mm 500)
Mini binding size: mm 105x105
Standard kit: 1/4” (on request 3/16”, 5/16”, 3/8").
Standard pitch: 3:1” (on request 4:1”).
Maximum perforating thickness: mm 4 “a time” (depending on the pitch, the material, the calendar's wideness)
Touch-screen control
Comprensive of: Variable speed wire-o unroller
Delivery conveyor

Accessories:
• Binding kit: 3/16”, 1/4”, 5/16”, 3/8”.
• Device for shaping and inserting the hanger. It can store up to 500 pieces of pre-cut wire and 70 hangers
ready to be inserted.
Wire-o diameter 2mm, hanger's length from 70 up to 350 mm.

Technical data:
Electrical equipment: 400 V 3phase
Power: Kw 4,5
Compressed air: 6 bar and 25 l/min
Dimensions: 2400 x 1200 x 1500 mm
Weight: 1300 kg
Speed : 2000 cycles/h



Back to Top

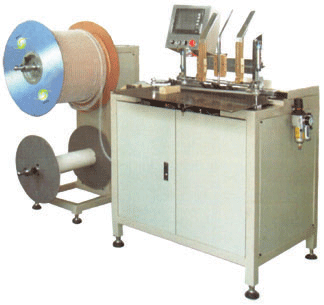

semi automatic wire inserter and closing machineWB50 is a semi-automatic wire inserter and closing machine, with calendar hanger capability.

WB- 50 automatically inserts wire and finishes binding on hand-fed pre-punched documents.

  • Ultra-high productivity
  • 2,000 cycles per hour (3:1 pitch)
  • Calendar capacity
  • Skip binding
  • 900 to 1700 books per hour, depending on size and
    operator skill

The user-friendly touch screen allows easy control for most functions without tedious manual adjustment.



Call DFG today at (800) 480-4DFG to request sample books.

Test It Before You Buy It:
Call to schedule a demonstration at our facility in Madison Heights, MI.

Back to Top

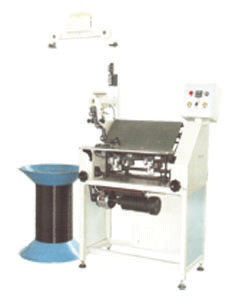

semi-automatic metal coil inserter machineHSC is a semi-automatic metal coil inserter machine with automatic forming, binding, cutting, and end finishing. HSC allows you to bind pre- punched documents like notebooks, calendars, manuals as fast as you can load book blocks.

  • 300 to 800 books per hour, depending on size and operator skill
  • On-Demand binding allows you to eliminate boxes of cut to length that can be damaged, and consolidates your entire metal coil inventory to easy to store spools
  • The user-friendly control pad allows easy control for most functions without tedious manual adjustment.
  • Ten times more efficient than manual binding



Call DFG today at (800) 480-4DFG to request sample books.

Test It Before You Buy It:
Call to schedule a demonstration at our facility in Madison Heights, MI.



Back to Top

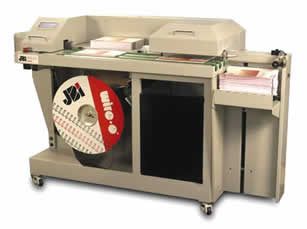

wire binding machineThe Wire-O Bind is a high speed, instantly adjustable binding machine with a patented closing unit that positions and feeds books without the need for stops or paper guides.

Binds books 1/4" to 1-1/4" at a rate up to 1000 books per hour depending on format, paper quality, and operator skill.



Call DFG today at (800) 480-4DFG to request sample books.

Test It Before You Buy It:
Call to schedule a demonstration at our facility in Madison Heights, MI.

Back to Top

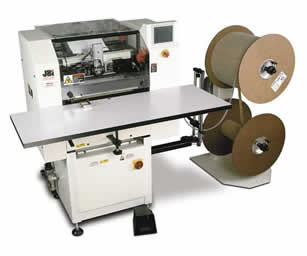

wire binding machineTwo versatile, high speed semi-automatic models with binding edges from 2” to 27”.

The BB50H automatically finishes hand-fed punched documents with Wire-O sizes from 1/4” to 1”, up to 20” wide.

The BC70 offers the same features while extending the finishing width up to 27”.

Utilizes shaped closing tools for each wire size from 1/4" to 1" to assure a smooth round close on each book. Includes skip binding capability and a high speed automatic calendar hanger feeder.


Call DFG today at (800) 480-4DFG to request sample books.

Test It Before You Buy It:
Call to schedule a demonstration at our facility in Madison Heights, MI.
